We are proud of the new Dragonfly 28, which sets new standards for the possibilities of a sailing boat. The perfect boat does not exist – but the Dragonfly 28 is very close to this ideal.

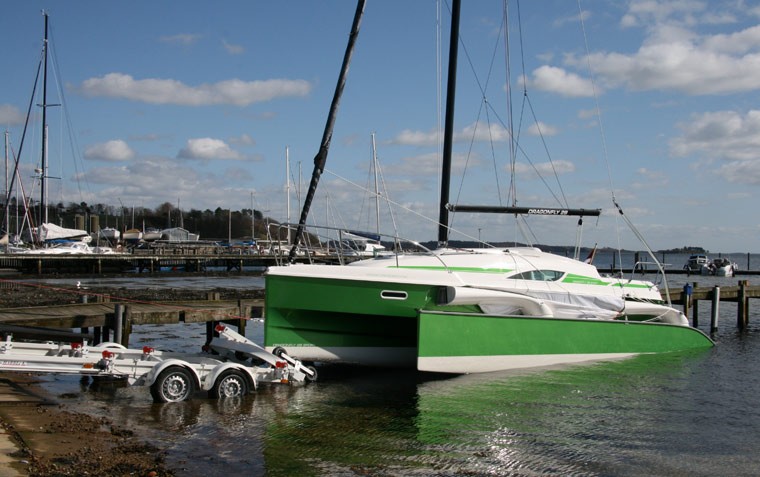

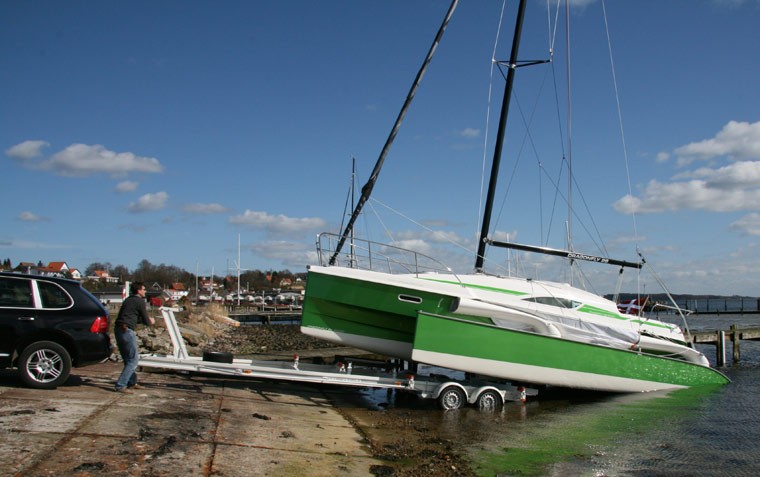

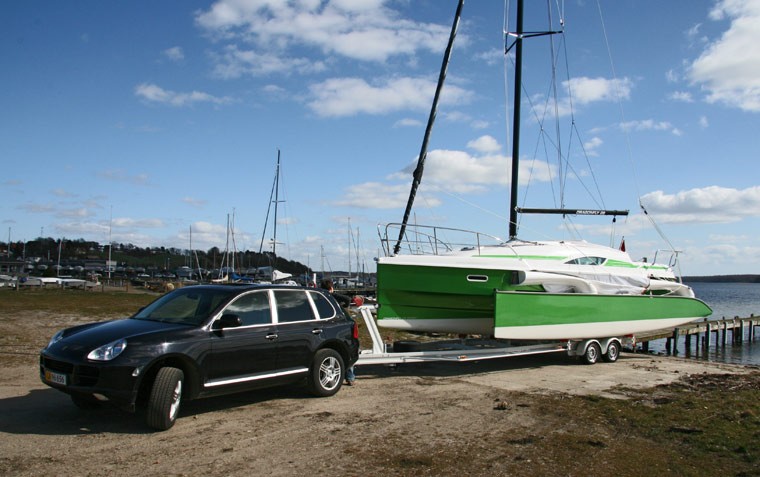

The Dragonfly 28 is a brand new concept line in the Dragonfly range. The boat sets new standards for leisure and flexibiility on the water and on wheels. The Dragonfly 28 has been a lifelong dream of Jens Quorning, who designed and developed this complex boat with his co-designer Steen Olsen. The development took almost 2 years – now the boat is a reality. This boat is the ultimate combination of design and function. This is a 28′ foldable and trailable trimaran, which means that you have all the benefits and features from a trimaran on the water -allowing speeds up to 20+ knots, shallow draft of only 0.4 m and super comfort while sailing, as the boat is hardly heeling. The boat offers five full size comfortable berths of each 2 m, a nice main cabin with excellent view and a very big cockpit for the whole family. On the trailer you can average 45 knots – launch and rig the boat yourself with a set-up time of 30 to 40 minutes.
The Dragonfly trimarans really shines when it comes to usable versatility, sometimes it’s quite fun to see what sailors come up with when playing.
The Dragonfly 28 appeals to both family sailing and racing alike – just hit the cruising speed that makes you all smile. Compared to monohulls, the trimaran is so much more comfortable to sail. Furthermore, you have a much longer range on the water, or you get to your destination in a shorter time.
The boat is easy to sail even for one person – all in all a multifunctional multihul…
You may also read this and more tests and opinions in our article archive.

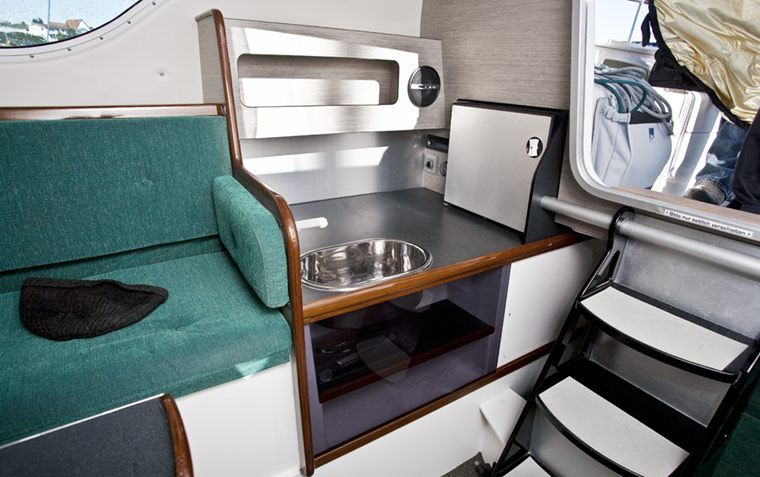

A 28′ folding trimaran that can sleep 5 adults, offering an aft cabin, queen size V-berth and two easily set-up foldable berths in the main cabin. All bunks are 2 m+ long. The boat has a standing headroom of 1.85 m in the main cabin as well as a generous galley space on each side. The spacious dinette offers a nice view outside, similar to a deck saloon yacht. A fridge box is available in the right position of the galley work space. The big double trampolines offer the perfect sun deck – like on a super yacht!
Dragonfly 28 Specifications
In this small presentation we hope to give you an idea of the possibillities of the Dragonfly 28. The time is for open for exploration and new discoveries.
SPECIFICATIONS DRAGONFLY 28
TOURING
SPORT
Length overall centre hull
8.75 M
8.75 M
Length waterline centre hull
8.60 M
8.60 M
Length folded
9.99 M
9.99 M
Length sailing
9.05 M
9.05 M
Beam sailing
6.50 M
6.50 M
Beam folded
2.54 M
2.54 M
Draft
0.40 M
0.40 M
Draft incl. centerboard
1.70 M
1.70 M
Weight of standardboat incl.sails
1,900 Kg
1,900 Kg
Payload max. incl. crew
725 Kg
725 Kg
Max. total weight excl. crew
2,000 Kg
2,000 Kg
Watertank
80 L
80 L
Holdingtank (optional)
60 L
60 L
Engine outboard
8-10 Hp
8-10 Hp
Max. engine-Hp
15 Hp
15 Hp
Max. persons CE category-B
5
5
Max .persons CE category-C
7
7
Mast section total excl. antennas
12.10 M
13.60 M
Mast height over water level
13.75 M
15.25 M
Mainsail
35 M2
42 M2
Jib furling
19 M2
21 M2
Code 0 furling
35 M2
45 M2
Asymmetric spinnaker
65 M2
80 M2
Bowsprit length
1.60 M
1.90 M
Trailer weight (aluminium)
500 Kg
500 Kg
Max. total trailer weight
2,500 Kg
2,500 Kg
Unsinkable
Yes
Yes
Fun Factor
100%
100%
Design CE categori
C+B
C+B
